3.8.2. Parkings. Rules for drawing and adding attributes.
Below you'll find:
220.127.116.11. Rules for drawing Parking lots
When drawing parking:
Draw “Parking” items using placemarks (although some parking lots should be drawn as “Territory” items — see point 18.104.22.168.1.4. Parking items include the following:
Underground parking Put the placemark at the entrances/exits to the underground parking lot. If the entrance is a separate structure, it is drawn as a building of the appropriate type (see Section 3.4. Buildings).
Don't draw the territories of underground parking and roads on their territory.
Put a placemark at the entrance to parking in buildings (including multi-level in special buildings) and also public parking that occupies part of a building. The building polygon is drawn in accordance with the rules for mapping buildings (see section 3.4. Buildings).
Don't draw roads in multi-level parking structures and roads that lead to the roofs of buildings (such as in mall parking lots).
Draw entrances to parking garages and cut the road off at the edge of the building (the entrance to the parking structure).

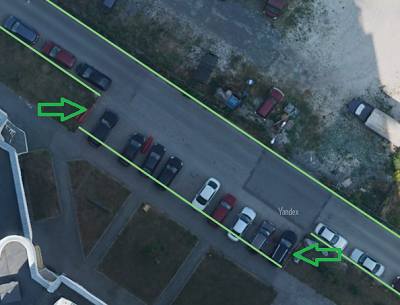

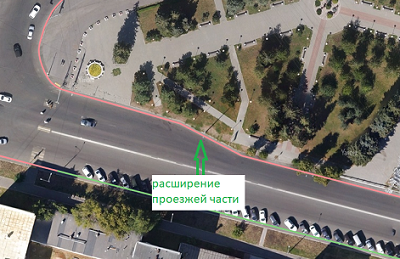

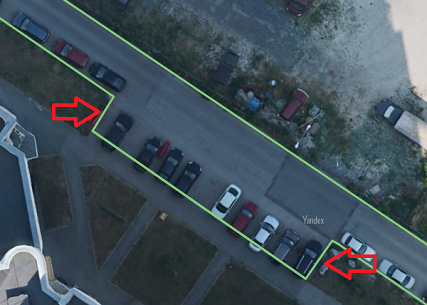

Always draw expanded sections of roadways designated for parking (parking pockets) if they are on class-8 roads (for class 1-7 roads, see point 22.214.171.124.3).

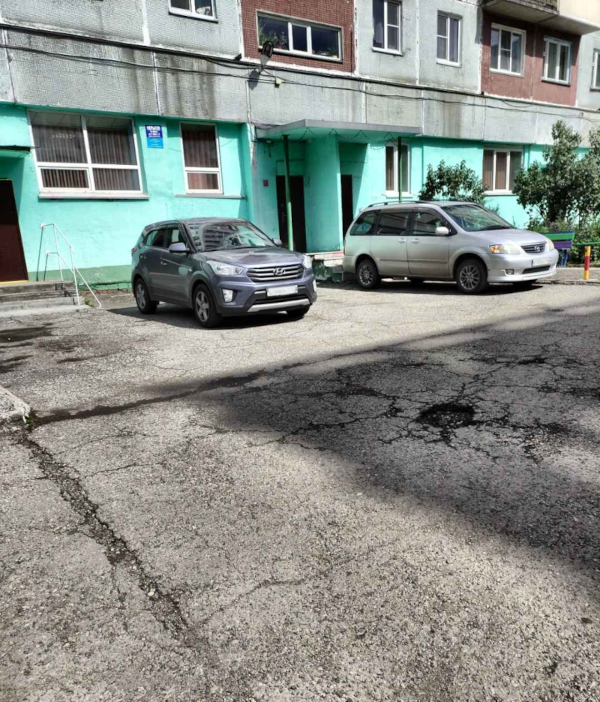

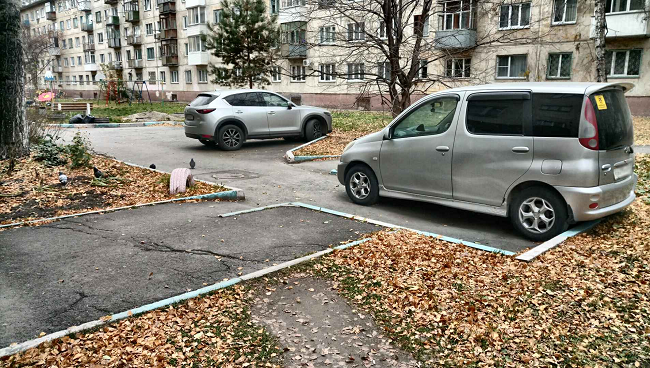

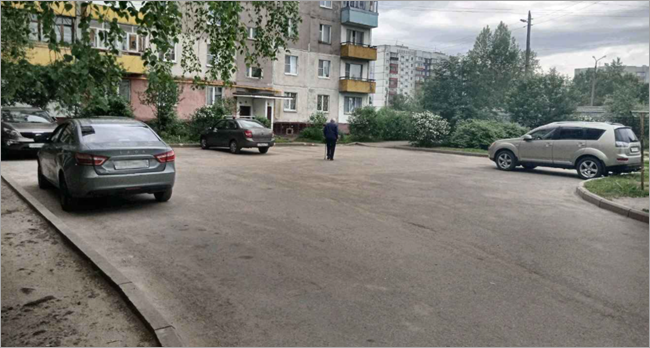

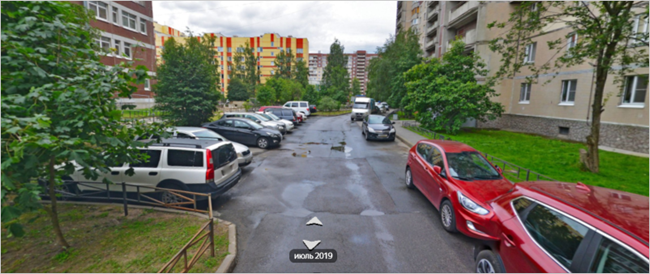

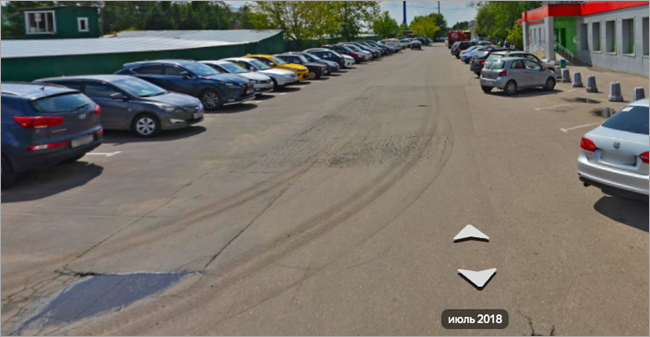

Territories that are specially designated for parking and are not roadways are designated with placemarks. Usually these are designated lots on the territories of organizations, malls, office centers, residential courtyards or between residential buildings and have entrances/exits.
Put the placemark at the approximate center of the parking lot if there are several entrances.
Put it at the entrance to the parking lot if there is only one entrance.

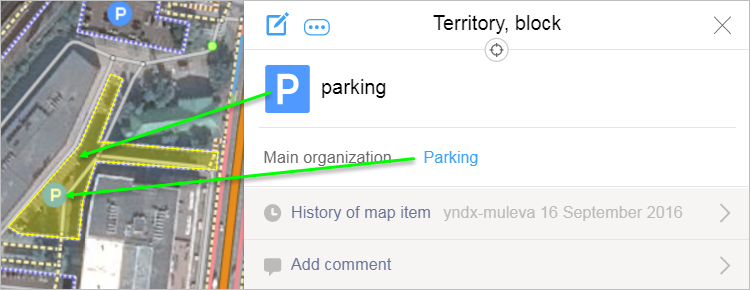

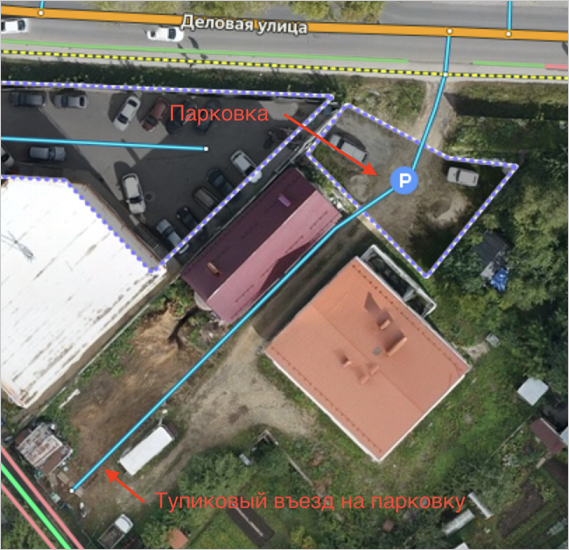

The territory itself is surrounded by a “Territory” a "Parking" type polygon, and the parking place is indicated as the main organization for this territory (see Section 3.7.2. The rules of territory attribution, Cls. 126.96.36.199, 188.8.131.52):
The methods of drawing and editing parking lots are similar to the methods of drawing and editing all of the place items on the Map Editor. See section 2.5. Places.
184.108.40.206. The rules of attribution of Parking

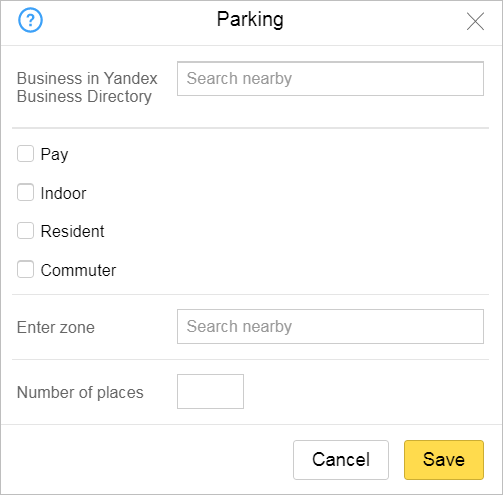

The attribute panel for a parking lot looks like this:
Rules for adding attributes to parking:
- 220.127.116.11.1. Paid
Check the box if the parking is paid.
- 18.104.22.168.2. Resident
Check the box if the parking is for residents.Residential parking includes lots where entrance is restricted to those with a permit. This designation also includes handicapped parking.
- For example: fenced in parking of various organizations, underground and ground-level parking at residential homes where entrance is restricted by a barrier or lifting gate.
For resident parking, “don't check” the paid box.
- 22.214.171.124.3. Indoor
Check this box if the “Parking” item represents the entrance to an underground parking lot or parking that partially or completely occupies the building.
- 126.96.36.199.4. Number of places
Enter the number of parking spots.
188.8.131.52. Linear Park: the rules of drawing and attribution

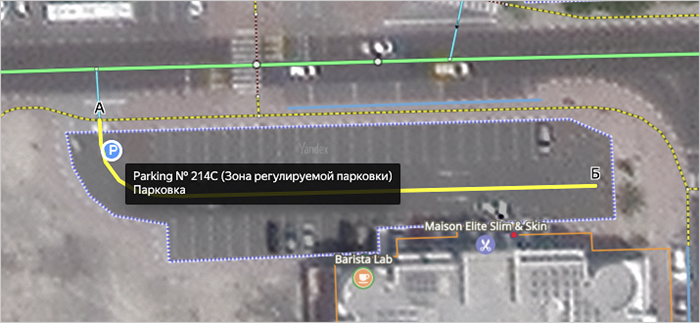

Draw lines of parking spots as simple linear items.
Only draw lines of parking spots that are located within localities.
Only draw parking within localities if there are signs that explicitly allow/forbid/restrict parking.In cities, you can draw lines of parking spots in more detail along roads of class 1-7 if you follow the signs and markings (or refer to the traffic laws if there aren't any signs).
When drawing lines of parking spots, you must make sure that their shape corresponds to that of the road network on the map (since the satellite image may be outdated).

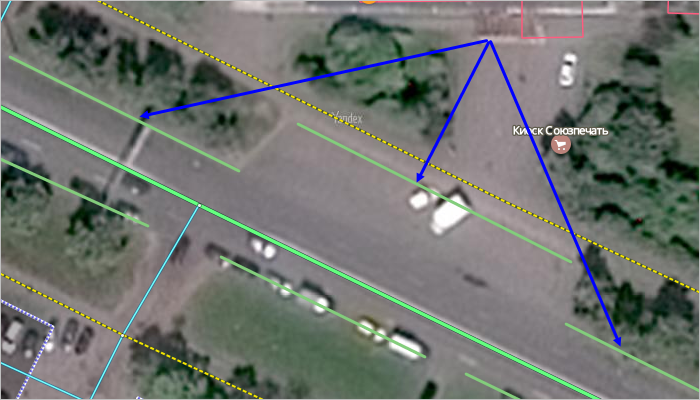

If there are different types of parking in the same general area, draw them separately (blue arrows):

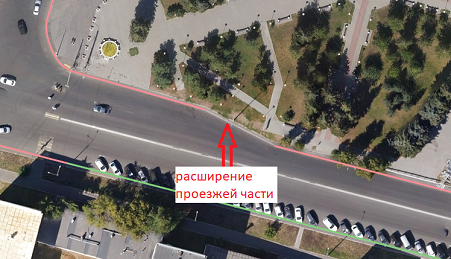

Draw lines of parking spots (including "pockets") along roads of class 1-7:
If the edge of a roadway is located 4.5 m or more from the line that represents a road section, then draw the parking line along the edge of the roadway.
If the edge of a roadway is located less than 4.5 m from the line that represents a road section, then draw the parking line 4.5 meters away from the road line, even if this results in an intersection with vegetation or pedestrian paths.
For example (in the drawing, the blue arrows point to road lines and the purple ones point to parking lines):
Correct Incorrect Correct Incorrect
There are exceptions, such as if drawing the line at that distance will cause parking lines to intersect with buildings. In that case, draw the parking line along the edge of the building.
Correct Incorrect Correct Incorrect
Lines of parking should not intersect with roads of class 1-8 except in cases when the road section and the line of parking spots are located at different levels.
You can only allow linear parking to intersect with a building if the road that you are drawing the parking along runs through an arch.
Don't draw linear parking:
Along roads of class 7 where traffic is restricted, including roads that are under construction, class-7 pedestrian paths, and roads located on closed territories (like the one on the closed territory of Nikolsky Ln.:
Don't draw parking in area where it is forbidden (such as between sections of a road drawn using two lines where the roadways are divided by a barrier, lawn, tram rails etc., or along exit ramps or u-turn areas.
You can usually determine value of the Time limit attribute for linear parking based on road signs or markings (or refer to the traffic laws if there aren't any signs).
Free parking — if signs indicate that parking is free.
If you are allowed to park for free more than 40% of the time from 8:00 am to 8:00 pm during the month and the rest of the time parking is prohibited, then indicate that parking is free. If this condition is not true, then mark that parking is forbidden.
Paid parking — if there is a paid parking sign, even if there are times when parking there is free (during certain days of the year, not all hours of the day, etc.);
Indicate that parking is paid if there are signs that indicate that you must pay to park at certain times (during even or odd days of the month, etc.) and at other times parking is forbidden.
Restricted parking ─

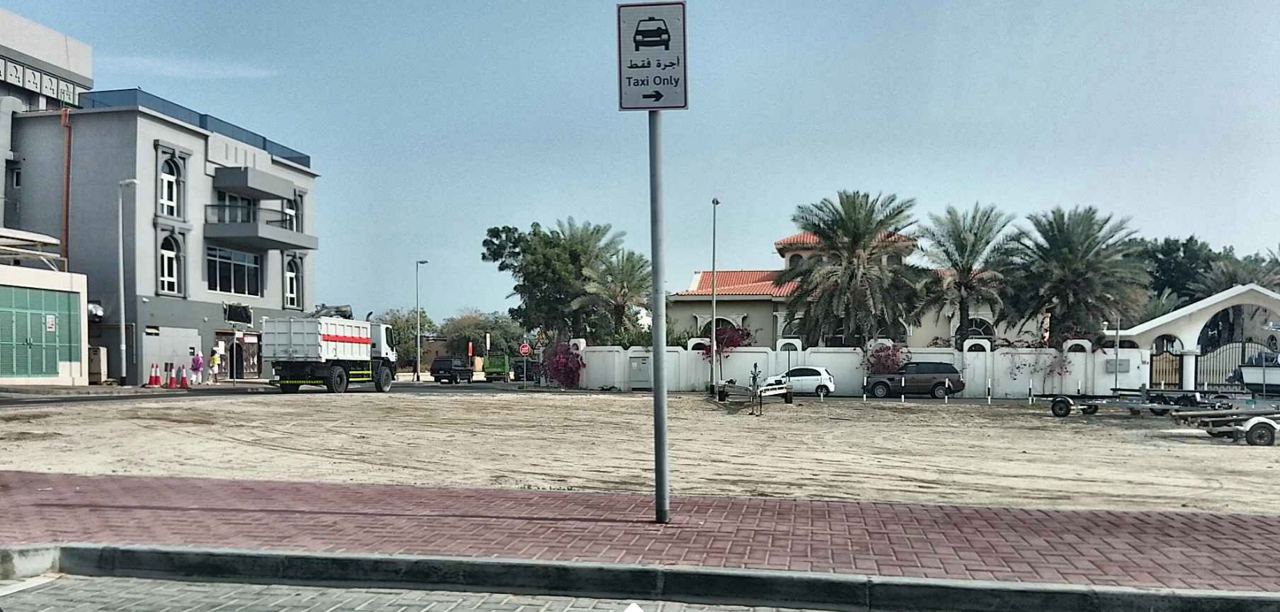

If a marking or sign reserves parking for certain categories of individuals (such as the handicapped)
If parking along a street is for residents and only employees of neighboring organizations can park their cars there.
Parking for customers of restaurants, hotels, etc.

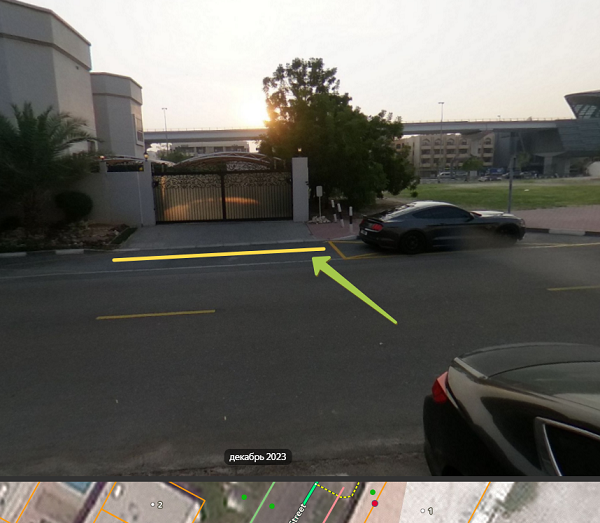

Forbidden parking — if parking or standing is forbidden.
In cities, you can draw lines of parking spots in more detail along roads of class 1-7 if you follow the signs and markings (or refer to the traffic laws if there aren't any signs).
