Add response options

Add new response options: checkboxes, radio buttons, and drop-down lists. Use a radio button or a drop-down list when you want performers to choose one response option out of several suggested ones. Checkboxes let performers select any combination of the suggested responses.

See what it looks like in the example of the “Photos of product and price tag” template

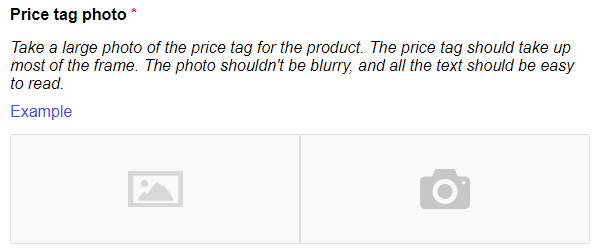

Before:

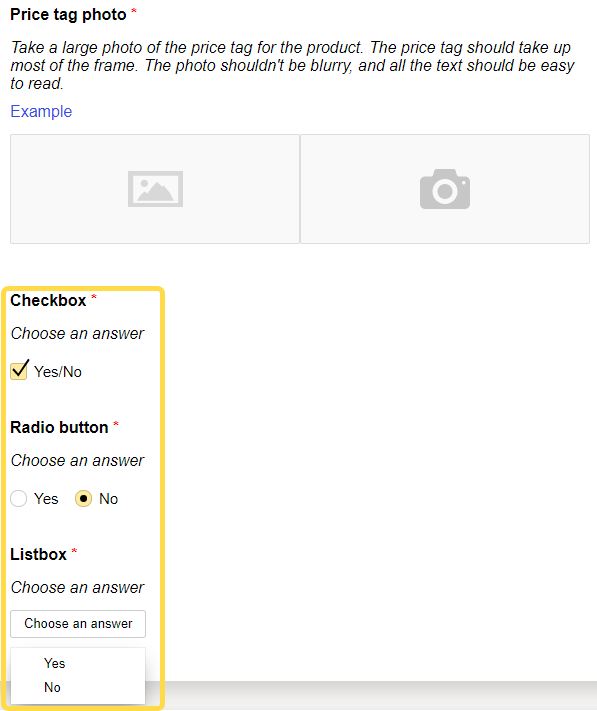

After:

For your convenience, here is the ready-made code for the “Photos of product and price tag” template, in which each of the fields is added to the first response button once. Use it to check your own code. You can find our additions to the code by searching for the word “customization”.

Ready-made code
{{#if reviewMode}}
    <div class="header-review">
        <div class="header-review__title">
            {{texts.task_title}}
        </div>
        <div class="header-review__buttons">
            {{#if (equal verdict "ok")}}
                <div class="header-review__btn header-review__btn_green">
                    {{texts.btn_ok.title}}
                </div>
            {{/if}}
            {{#if (equal verdict "no_price")}}
                <div class="header-review__btn header-review__btn_red">
                    {{texts.btn_no_price.title}}
                </div>
            {{/if}}
            {{#if (equal verdict "no_item")}}
                <div class="header-review__btn header-review__btn_red">
                    {{texts.btn_no_item.title}}
                </div>
            {{/if}}
            {{#if (equal verdict "no_shop")}}
                <div class="header-review__btn header-review__btn_red">
                    {{texts.btn_no_shop.title}}
                </div>
            {{/if}}
        </div>
    </div>
{{else}}
    <div class="header">
        {{texts.task_title}}
    </div>
{{/if}}

<div class="info">
    {{#if reviewMode}}
        <div class="info__review">
            <div class="info__review-block">
                <div class="info__title">
                    {{texts.info_name}}
                </div>
                <div class="info__content">
                    {{name}}
                </div>
            </div>
            <div class="info__review-block">
                <div class="info__title">
                    {{texts.info_address}}
                </div>
                <div class="info__content">
                    {{address}}
                </div>
            </div>
        </div>
    {{else}}
        <div class="info__block">
            <div class="info__title">
                {{texts.info_name}}
            </div>
            <div class="info__content">
                {{name}}
            </div>
        </div>
        <div class="info__block">
            <div class="info__title">
                {{texts.info_address}}
            </div>
            <div class="info__content">
                {{address}}
            </div>
        </div>
    {{/if}}
    <div class="info__block">
        <div class="info__title">
            {{texts.info_description}}
        </div>
        <div class="info__content">
            {{product}}
        </div>
    </div>
    <div class="info__block">
        <div class="info__content">
            <a href={{image}} target="_blank" class="info__link">Link to the product image</a>
        </div>
    </div>
</div>

{{#if reviewMode}}
    <div class="review">
        <div class="review__map">
            <div id="{{concat 'map_' id}}" style="width: 100%; height: 400px;"></div>
        </div>
        {{#if (equal verdict "ok")}}
            <div class="review__block">
                <div class="review__title">
                    {{texts.btn_ok.question_1.title}}
                </div>
                <div class="review__imgs-grid">
                    {{#each imgs_facade}}
                        <div class="review__grid-item">
                            <div class="review__grid-inner">
                                <img src="{{this}}" class="review__img" data-rotationdeg="0">
                                <div class="review__rotate-panel">
                                    <span class="review__rotate review__rotate_left">←</span>
                                    <span class="review__rotate review__rotate_right">→</span>
                                </div>
                            </div>
                        </div>
                    {{/each}}
                </div>
            </div>
            <div class="review__block">
                <div class="review__title">
                    {{texts.btn_ok.question_2.title}}
                </div>
                <div class="review__imgs-grid">
                    {{#each imgs_item}}
                        <div class="review__grid-item">
                            <div class="review__grid-inner">
                                <img src="{{this}}" class="review__img" data-rotationdeg="0">
                                <div class="review__rotate-panel">
                                    <span class="review__rotate review__rotate_left">←</span>
                                    <span class="review__rotate review__rotate_right">→</span>
                                </div>
                            </div>
                        </div>
                    {{/each}}
                </div>
            </div>
            <div class="review__block">
                <div class="review__title">
                    {{texts.btn_ok.question_3.title}}
                </div>
                <div class="review__imgs-grid">
                    {{#each imgs_price}}
                        <div class="review__grid-item">
                            <div class="review__grid-inner">
                                <img src="{{this}}" class="review__img" data-rotationdeg="0">
                                <div class="review__rotate-panel">
                                    <span class="review__rotate review__rotate_left">←</span>
                                    <span class="review__rotate review__rotate_right">→</span>
                                </div>
                            </div>
                        </div>
                    {{/each}}
                </div>
            </div>

            <!-- customization fragment start -->
            <!-- checkbox -->
            <div class="review__block">
              <div class="review__title">
                {{texts.btn_ok.question_new_checkbox.title}}
              </div>
              <div class="review__box">
                {{field type="checkbox" name="checkbox_result" label="checkbox" size="L"}}
              </div>
            </div>

            <!-- radio button -->
            <div class="review__block">
              <div class="review__title">
                {{texts.btn_ok.question_new_radio.title}}
              </div>
              <div class="review__box">
                {{field type="radio" name="radio_result" label="Yes" value="Yes" size="L" validation-show="top-left"}}
                {{field type="radio" name="radio_result" label="No" value="No" size="L" validation-show="top-left"}}
              </div>
            </div>

            <!-- drop-down list -->
            <div class="review__block">
              <div class="review__title">
                {{texts.btn_ok.question_new_select.title}}
              </div>
              <div class="review__box">
                {{#field type="select" name="select_result" placeholder="Select an answer" validation-show="top-left"}}
                  {{select_item value="Yes" text="Yes"}}
                  {{select_item value="No" text="No"}}
                {{/field}}
              </div>
            </div>
            <!-- customization fragment end -->

        {{/if}}
        {{#if (equal verdict "no_price")}}
            <div class="review__block">
                <div class="review__title">
                    {{texts.btn_no_price.question_1.title}}
                </div>
                <div class="review__imgs-grid">
                    {{#each imgs_facade}}
                        <div class="review__grid-item">
                            <div class="review__grid-inner">
                                <img src="{{this}}" class="review__img" data-rotationdeg="0">
                                <div class="review__rotate-panel">
                                    <span class="review__rotate review__rotate_left">←</span>
                                    <span class="review__rotate review__rotate_right">→</span>
                                </div>
                            </div>
                        </div>
                    {{/each}}
                </div>
            </div>
            <div class="review__block">
                <div class="review__title">
                    {{texts.btn_no_price.question_2.title}}
                </div>
                <div class="review__imgs-grid">
                    {{#each imgs_item}}
                        <div class="review__grid-item">
                            <div class="review__grid-inner">
                                <img src="{{this}}" class="review__img" data-rotationdeg="0">
                                <div class="review__rotate-panel">
                                    <span class="review__rotate review__rotate_left">←</span>
                                    <span class="review__rotate review__rotate_right">→</span>
                                </div>
                            </div>
                        </div>
                    {{/each}}
                </div>
            </div>
        {{/if}}
        {{#if (equal verdict "no_item")}}
            <div class="review__block">
                <div class="review__title">
                    {{texts.btn_no_item.question_1.title}}
                </div>
                <div class="review__imgs-grid">
                    {{#each imgs_facade}}
                        <div class="review__grid-item">
                            <div class="review__grid-inner">
                                <img src="{{this}}" class="review__img" data-rotationdeg="0">
                                <div class="review__rotate-panel">
                                    <span class="review__rotate review__rotate_left">←</span>
                                    <span class="review__rotate review__rotate_right">→</span>
                                </div>
                            </div>
                        </div>
                    {{/each}}
                </div>
            </div>
            <div class="review__block">
                <div class="review__title">
                    {{texts.btn_no_item.question_2.title}}
                </div>
                <div class="review__imgs-grid">
                    {{#each imgs_shelf}}
                        <div class="review__grid-item">
                            <div class="review__grid-inner">
                                <img src="{{this}}" class="review__img" data-rotationdeg="0">
                                <div class="review__rotate-panel">
                                    <span class="review__rotate review__rotate_left">←</span>
                                    <span class="review__rotate review__rotate_right">→</span>
                                </div>
                            </div>
                        </div>
                    {{/each}}
                </div>
            </div>
            {{#if comment}}
                <div class="review__block">
                    <div class="review__title">
                        {{texts.btn_no_item.question_3.title}}
                    </div>
                    <div class="review__comment">
                        {{field type="textarea" name="comment" width="100%" rows=5}}
                    </div>
                </div>
            {{/if}}
        {{/if}}
        {{#if (equal verdict "no_shop")}}
            <div class="review__block">
                <div class="review__title">
                    {{texts.btn_no_shop.question_1.title}}
                </div>
                <div class="review__imgs-grid">
                    {{#each imgs_around}}
                        <div class="review__grid-item">
                            <div class="review__grid-inner">
                                <img src="{{this}}" class="review__img" data-rotationdeg="0">
                                <div class="review__rotate-panel">
                                    <span class="review__rotate review__rotate_left">←</span>
                                    <span class="review__rotate review__rotate_right">→</span>
                                </div>
                            </div>
                        </div>
                    {{/each}}
                </div>
            </div>
            <div class="review__block">
                <div class="review__title">
                    {{texts.btn_no_shop.question_2.title}}
                </div>
                <div class="review__imgs-grid">
                    {{#each imgs_address}}
                        <div class="review__grid-item">
                            <div class="review__grid-inner">
                                <img src="{{this}}" class="review__img" data-rotationdeg="0">
                                <div class="review__rotate-panel">
                                    <span class="review__rotate review__rotate_left">←</span>
                                    <span class="review__rotate review__rotate_right">→</span>
                                </div>
                            </div>
                        </div>
                    {{/each}}
                </div>
            </div>
            <div class="review__block">
                <div class="review__title">
                    {{texts.btn_no_shop.question_3.title}}
                </div>
                <div class="review__comment">
                    {{field type="textarea" name="comment" width="100%" rows=5}}
                </div>
            </div>
        {{/if}}
    </div>
{{else}}
    <div class="main">
        <div class="main__title">
            Select a task completion option:
        </div>
        <div class="main__container">
            <div class="main__popup main__popup_hidden">No option selected</div>
            <div class="main__block">
                <div class="main__btn main__btn_green">
                    {{texts.btn_ok.title}}
                </div>
                <div class="main__content">
                    <div class="main__content-block">
                        <div class="main__content-title main__content-title_req">
                            {{texts.btn_ok.question_1.title}}
                        </div>
                        <div class="main__text">
                            {{texts.btn_ok.question_1.description}}
                        </div>
                        <div class="main__ex">
                            <a href="{{texts.btn_ok.question_1.example_link_1}}" target="_blank" class="main__ex-link">Example</a>
                        </div>
                        <div class="main__imgs">
                            {{field type="file-img" name="imgs_facade" camera=true preview=true compress=false validation-show="top-left"}}
                        </div>
                    </div>
                    <div class="main__content-block">
                        <div class="main__content-title main__content-title_req">
                            {{texts.btn_ok.question_2.title}}
                        </div>
                        <div class="main__text">
                            {{texts.btn_ok.question_2.description}}
                        </div>
                        <div class="main__ex">
                            <a href="{{texts.btn_ok.question_2.example_link_1}}" target="_blank" class="main__ex-link">Example</a>
                        </div>
                        <div class="main__imgs">
                            {{field type="file-img" name="imgs_item" camera=true preview=true compress=false validation-show="top-left"}}
                        </div>
                    </div>
                    <div class="main__content-block">
                        <div class="main__content-title main__content-title_req">
                            {{texts.btn_ok.question_3.title}}
                        </div>
                        <div class="main__text">
                            {{texts.btn_ok.question_3.description}}
                        </div>
                        <div class="main__ex">
                            <a href="{{texts.btn_ok.question_3.example_link_1}}" target="_blank" class="main__ex-link">Example</a>
                        </div>
                        <div class="main__imgs">
                            {{field type="file-img" name="imgs_price" camera=true preview=true compress=false validation-show="top-left"}}
                        </div>
                    </div>

                    <!-- customization fragment start -->
            <!-- checkbox -->
                    <div class="main__content-block">
                      <div class="main__content-title main__content-title_req">
                        {{texts.btn_ok.question_new_checkbox.title}}
                      </div>
                      <div class="main__text">
                        {{texts.btn_ok.question_new_checkbox.description}}
                      </div>
                      <div class="main__box">
                        {{field type="checkbox" name="checkbox_result" label="checkbox" size="L"}}
                      </div>
                    </div>

                    <!-- radio button -->
                    <div class="main__content-block">
                      <div class="main__content-title main__content-title_req">
                        {{texts.btn_ok.question_new_radio.title}}
                      </div>
                      <div class="main__text">
                        {{texts.btn_ok.question_new_radio.description}}
                      </div>
                      <div class="main__box">
                        {{field type="radio" name="radio_result" label="Yes" value="Yes" size="L" validation-show="top-left"}}
                        {{field type="radio" name="radio_result" label="No" value="No" size="L" validation-show="top-left"}}
                      </div>
                    </div>

                    <!-- drop-down list -->
                    <div class="main__content-block">
                      <div class="main__content-title main__content-title_req">
                        {{texts.btn_ok.question_new_select.title}}
                      </div>
                      <div class="main__text">
                        {{texts.btn_ok.question_new_select.description}}
                      </div>
                      <div class="main__box">
                        {{#field type="select" name="select_result" placeholder="Select an answer" validation-show="top-left"}}
                          {{select_item value="Yes" text="Yes"}}
                          {{select_item value="No" text="No"}}
                        {{/field}}
                      </div>
                    </div>
                    <!-- customization fragment end -->

                </div>
            </div>
            <div class="main__block">
                <div class="main__btn main__btn_red">
                    {{texts.btn_no_price.title}}
                </div>
                <div class="main__content">
                    <div class="main__content-block">
                        <div class="main__content-title main__content-title_req">
                            {{texts.btn_no_price.question_1.title}}
                        </div>
                        <div class="main__text">
                            {{texts.btn_no_price.question_1.description}}
                        </div>
                        <div class="main__ex">
                            <a href="{{texts.btn_no_price.question_1.example_link_1}}" target="_blank" class="main__ex-link">Example</a>
                        </div>
                        <div class="main__imgs">
                            {{field type="file-img" name="imgs_facade" camera=true validation-show="top-left"}}
                        </div>
                    </div>
                    <div class="main__content-block">
                        <div class="main__content-title main__content-title_req">
                            {{texts.btn_no_price.question_2.title}}
                        </div>
                        <div class="main__text">
                            {{texts.btn_no_price.question_2.description}}
                        </div>
                        <div class="main__ex">
                            <a href="{{texts.btn_no_price.question_2.example_link_1}}" target="_blank" class="main__ex-link">Example</a>
                        </div>
                        <div class="main__imgs">
                            {{field type="file-img" name="imgs_item" camera=true validation-show="top-left"}}
                        </div>
                    </div>
                </div>
            </div>
            <div class="main__block">
                <div class="main__btn main__btn_red">
                    {{texts.btn_no_item.title}}
                </div>
                <div class="main__content">
                    <div class="main__content-block">
                        <div class="main__content-title main__content-title_req">
                            {{texts.btn_no_item.question_1.title}}
                        </div>
                        <div class="main__text">
                            {{texts.btn_no_item.question_1.description}}
                        </div>
                        <div class="main__ex">
                            <a href="{{texts.btn_no_item.question_1.example_link_1}}" target="_blank" class="main__ex-link">Example</a>
                        </div>
                        <div class="main__imgs">
                            {{field type="file-img" name="imgs_facade" camera=true validation-show="top-left"}}
                        </div>
                    </div>
                    <div class="main__content-block">
                        <div class="main__content-title main__content-title_req">
                            {{texts.btn_no_item.question_2.title}}
                        </div>
                        <div class="main__text">
                            {{texts.btn_no_item.question_2.description}}
                        </div>
                        <div class="main__ex">
                            <a href="{{texts.btn_no_item.question_2.example_link_1}}" target="_blank" class="main__ex-link">Example</a>
                        </div>
                        <div class="main__imgs">
                            {{field type="file-img" name="imgs_shelf" camera=true validation-show="top-left"}}
                        </div>
                    </div>
                    <div class="main__content-block">
                        <div class="main__content-title">
                            {{texts.btn_no_item.question_3.title}}
                        </div>
                        <div class="main__text">
                            {{texts.btn_no_item.question_3.description}}
                        </div>
                        <div class="main__comment">
                            {{field type="textarea" name="comment" width="100%" rows=5 validation-show="top-left"}}
                        </div>
                    </div>
                </div>
            </div>
            <div class="main__block">
                <div class="main__btn main__btn_red">
                    {{texts.btn_no_shop.title}}
                </div>
                <div class="main__content">
                    <div class="main__content-block">
                        <div class="main__text main__text_req">
                            {{texts.btn_no_shop.question_1.description}}
                        </div>
                        <div class="main__imgs">
                            {{field type="file-img" name="imgs_around" camera=true validation-show="top-left"}}
                        </div>
                    </div>
                    <div class="main__content-block">
                        <div class="main__text main__text_req">
                            {{texts.btn_no_shop.question_2.description}}
                        </div>
                        <div class="main__ex">
                            <a href="{{texts.btn_no_shop.question_2.example_link_1}}" target="_blank" class="main__ex-link">Example</a>
                        </div>
                        <div class="main__imgs">
                            {{field type="file-img" name="imgs_address" camera=true validation-show="top-left"}}
                        </div>
                    </div>
                    <div class="main__content-block">
                        <div class="main__content-title main__content-title_req">
                            {{texts.btn_no_shop.question_3.title}}
                        </div>
                        <div class="main__text">
                            {{texts.btn_no_shop.question_3.description}}
                        </div>
                        <div class="main__comment">
                            {{field type="textarea" name="comment" width="100%" rows=5 validation-show="top-left"}}
                        </div>
                    </div>
                </div>
            </div>
        </div>
    </div>
{{/if}}

Now let's see how to add each field manually.

The template uses a special component to simplify development. Learn more in Checkbox.

Editing the output specification

Add a new field:

checkbox_result — checkbox (boolean).

Add a field for each checkbox you need and give them unique names. For example, if you need three checkboxes, add three fields with the names checkbox_result1, checkbox_result2, and checkbox_result3.

Editing HTML
  1. The HTML code consists of blocks describing various interface elements. Each block may contain other blocks within it. There may be several nesting levels. For example, the block with a response button description contains other blocks with input fields. Each field contains other elements, such as a title and a comment field.

    Each block looks like this:

    <div class="block_name">
      <!-- code for the block that may contain nested blocks -->
      ...
    </div>
  2. Find the main block (it starts with <div class="main">). It contains several main_block blocks within it, each describing one of the buttons. For example, the “Photos of product and price tag” template has 4 response buttons, which means that its main block contains 4 main_block blocks for each of the buttons.

    Each button has a name for accessing its properties. For example, the buttons in the “Photos of product and price tag” template are named btn_ok, btn_no_price, btn_no_item, and btn_no_shop. Remember the name of the button that you are adding new fields to in the code.

    The main_content block inside main__block contains all the fields for the selected button. The description of each field is located in main__content-block.

    Find the button in the main__block block, then find the main__content-block field where you want to add a new field and paste the following code after it:

    <!-- checkbox -->
    <div class="main__content-block">
      <div class="main__content-title main__content-title_req">
        {{texts.btn_ok.question_new_checkbox.title}}
      </div>
      <div class="main__text">
        {{texts.btn_ok.question_new_checkbox.description}}
      </div>
      <div class="main__box">
        {{field type="checkbox" name="checkbox_result" label="checkbox" size="L"}}
      </div>
    </div>

    In this code, a checkbox is added to the button with the name btn_ok. If you added a checkbox to another button, replace btn_ok with the relevant button's name.

    The checkboxes are listed in themain__box blocks as strings:

    {{field type="checkbox" name="checkbox_result" label="checkbox" size="L"}}

    In the code above, one checkbox is added. The output value will be passed to the checkbox_result field that you added to the output specification.

    To add multiple checkboxes, paste the same strings in the code for each of the fields you added to the output specification. Change the value of the name parameter for each of the checkboxes to what you named them in the output specification. For example, if you added new fields for three checkboxes to the output specification, insert this string three times and then change the "checkbox_result" values in each line to what you named them in the specification.

    Change the value of the label parameter. It contains a caption displayed next to the checkbox.

  3. Update the acceptance mode.

    The review block contains the code for each button in the acceptance mode. This code is located in the following blocks:

    {{#if (equal verdict "ok")}}
      <!-- code for the "ok" button in acceptance mode -->
      <div class="review__block">
        <!-- code for the "ok" button field in acceptance mode -->
        ...
      </div>
      ...
    {{/if}}

    The value of the response button selected by the performer is passed to the verdict variable specified in the output specification.

    For example, in the “Photos of product and price tag” template, 4 values are described for 4 buttons: ok, no_price, no_item, and no_shop.

    The review__block blocks contain a description of each field for this button.

    Find the button by searching for the string {{#if (equal verdict "response_button_value")}}, then find the review__block field where you want to add a new field and insert the following code after it:

    <!-- checkbox -->
    <div class="review__block">
      <div class="review__title">
        {{texts.btn_ok.question_new_checkbox.title}}
      </div>
      <div class="review__box">
        {{field type="checkbox" name="checkbox_result" label="checkbox" size="L"}}
      </div>
    </div>

    In this code, a checkbox is added to the button with the name btn_ok. If you added a checkbox to another button, replace btn_ok with the relevant button's name.

    The checkboxes are listed in the review__box block as strings:

    {{field type="checkbox" name="checkbox_result" label="checkbox" size="L"}}

    In the code above, one checkbox is added. The output value will be passed to the checkbox_result field that you added to the output specification.

    To add multiple checkboxes, paste the same strings in the code for each of the fields you added to the output specification. Change the value of the name parameter for each of the checkboxes to what you named them in the output specification. For example, if you added new fields for three checkboxes to the output specification, insert this string three times and then change the "checkbox_result" values in each line to what you named them in the specification.

    Change the value of the label parameter. It contains a caption displayed next to the checkbox.

Editing JS
  1. The JS code consists of blocks describing various interface elements. These blocks can be nested (buttons contain a set of fields, fields contain a set of elements, and so on). Each block is enclosed in curly brackets.

    The elements are described as follows:

    'property': 'value'

    The value can also consist of several properties, in which case it is enclosed in curly brackets and forms the next level of nesting.

  2. The texts constant at the very beginning of the file stores all texts for each button.

    Each button has a name for accessing its properties. For example, the buttons in the “Photos of product and price tag” template are named btn_ok, btn_no_price, btn_no_item, and btn_no_shop. Remember the name of the button that you are adding new text to in the code.

    For example, in the “Photos of product and price tag” template, the texts for the btn_ok button are located in the following code block:

    var texts = {
        //<common header text>
        'btn_ok': {
            'title': 'I found the price tag for the product',
            'question_1': {
                //<texts for the first field (photos of the store's front)>
            },
            'question_2': {
                //<texts for the second field (product photos)>
            },
            'question_3': {
                //<texts for the third field (photo of the price tag)>
            }
        },
  3. To add the texts for checkboxes, put a comma after the curly bracket that closes the last field and paste the following code:

    'question_new_checkbox': {
      'title': 'Checkbox',
      'description': 'Select an answer'
    }

    Change the values of the title and description properties. The title property contains a title displayed above the group of checkboxes, and the description property contains a question for performers.

  4. Validation.

    The checkbox can be checked or unchecked, and both values are valid, so there are no separate validation rules for checkboxes.

    Note. If you mark the checkbox as required in the output specification, it does not mean that it must be selected. Checkboxes are boolean and take one of two values: true or false.
