3.13.2. Rules for adding attributes to rapid transit items
A rapid transit system includes metro (subway), light rail, high-speed trams and buses, cable cars and monorails, funiculars, and other off-street passenger transport. Rapid transit items on the map include rapid transit lines and sections of lines, stations, and exits from stations.
One of the types of rapid transit items is the light rail transit system (LRT), which features high-speed trams and light rail
(if it is built similar to high-speed trams). Special drawing rules and attributes apply to LRT systems (see below).
3.13.2.1 Attribution rules for rapid transit line sections

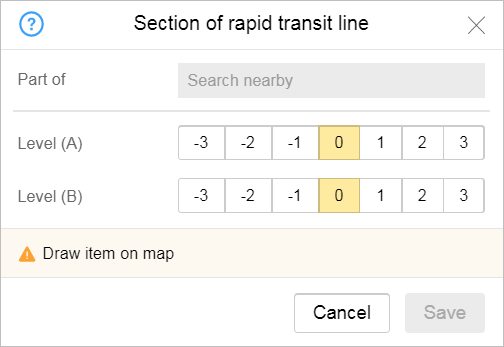

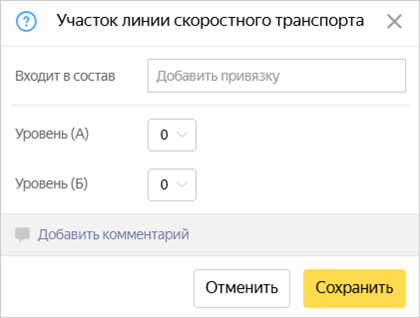

The attribute panel for rapid transit line sections looks like this:
When adding or editing attributes of rapid transit line sections, you need to follow the rules that apply specifically to these attributes:
3.13.2.1.1. Part of
The Part of
attribute indicates which rapid transit line the section belongs to.

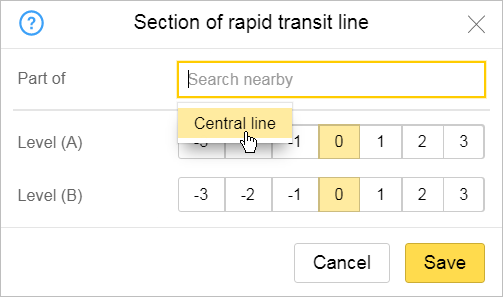

If the rapid transit line is already drawn on the map, select its name from the list. To add a new line, fill in the field manually:
After the item is saved, the name of the line is displayed on the panel as a link that opens the line editing panel. Editing techniques for such composite linear items are described in Section 2.6.2. Composite linear objects
3.13.2.1.2. Level A and Level B
Level A and Level B attributes aren't applied to rapid transit lines (they both must have a value of 0).
3.13.2.2. Rules for adding attributes to rapid transit stations

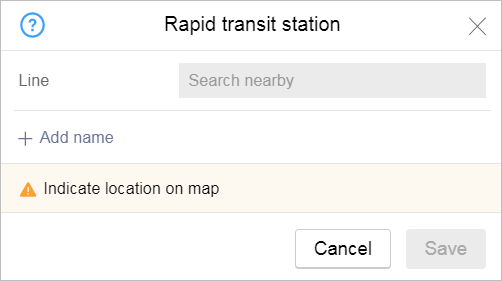

The attribute panel for stations of a rapid transport line looks like this:
When adding or editing attributes of rapid transit line stations, you need to follow the rules that apply specifically to these attributes:
3.13.2.2.1 Rapid transit line
The Rapid transit line
attribute indicates which rapid transit line the station belongs to.
Each station must be linked to a line.

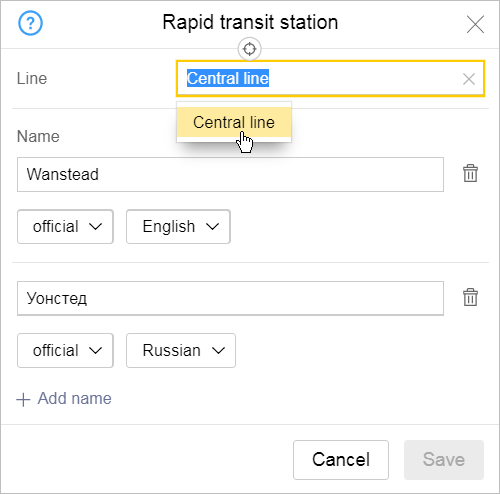

If the rapid transit line is already drawn on the map, you can select its name from the list. If the line wasn't drawn yet, create it first and then select it from the list:
Note
For each rapid transit line, indicate stations that belong to this line.
3.13.2.2.2. Name
The high-speed station name is assigned in accordance with the general rules. See 3.1.3. Map item naming rules. Additionally:
-
Never include the item type in Official and For caption on map names, regardless of the grammatical structure of the name.
Specify The address contains type name in the format:
type + proper name
.For example:
-
Official: _Tyoply Stan, _Biblioteka Imeni Lenina.
-
For caption on map: Tyoply Stan, Biblioteka Imeni Lenina.
-
The address contains: Metro Tyoply Stan, Metro Biblioteka Imeni Lenina.
-
-
Unofficial names (like historic names used in the past) may include the item type. For example, Izmailovsky park, and Izmailovsky Park station are both acceptable.
Note
Official, For caption on map, and The address contains are required fields.

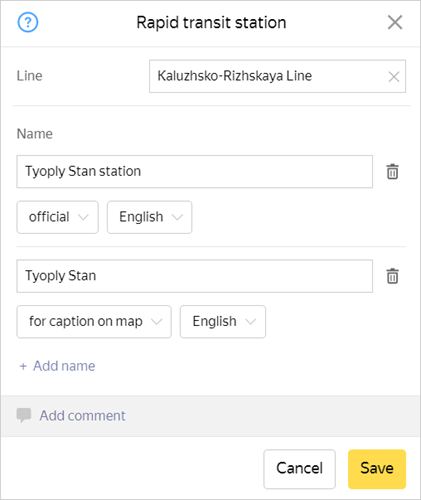

For example:
3.13.2.3. Rules for adding attributes to rapid transit stations exits

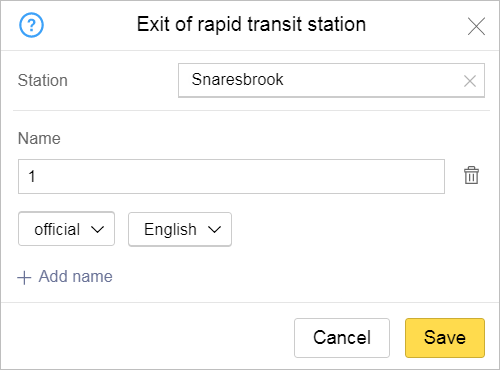

The attribute panel for exits from rapid transit stations looks like this:
When you add attributes to rapid transport station exits, follow the rules that apply specifically to their attributes:
3.13.2.3.1. Rapid transit station
The Rapid transit station
attribute indicates which specific rapid transit line station an exit belongs to.
If the high-speed transport station is already drawn on the map, then you can choose a name from the list. If there is no station on the map yet, you should first create it (see 3.13.1.2. Rules of drawing high-speed transport stations), and then the corresponding exits for the stations.
For each exit from a rapid transit line station, the parent station should be specified.
3.13.2.3.2. Name
The name of the exit from a rapid transit station is indicated only if it has a proper name, number, or other identifier; otherwise , do notcaption them.
Indicate the name, number, or other identifier of the exit as its Official
name.
The For caption on map
name type should only be used when an exit has an official name that needs to be shortened. This abbreviated name should be used as the caption.
Some examples of official names:
-
Numbered exit ─ 1
-
Exit with a proper name — GMK Bulvarı, Ziya Gökalp Caddesi (some metro exits in Ankara have proper names).
-
Labeled exit ─ D1.
Alert
-
The streets, addresses, and landmarks that an exit leads to (for example, exit to Andropova Avenue, Orbita Cinema, Kolomenskoye Nature Reserve , etc.), are not their proper names.
-
Do not add the following to an exit's name, number, or label:
-
— The name of the station the exit belongs to.
-
— The words
entrance
orexit
. -
— Any notes about the exit's current condition (for example, closed, under maintenance).
-
— Any info about the exit's features (for example, an elevator).
