2.7.1. General rules for drawing polygonal items

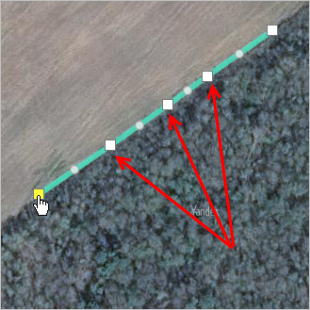

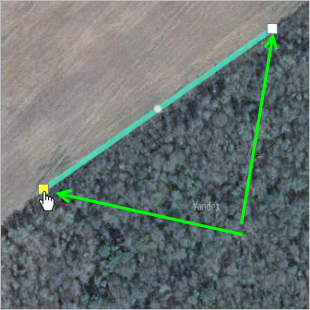

Sections of an item that are straight lines are drawn using two vertexes (for the beginning and ending points):

Correct Incorrect

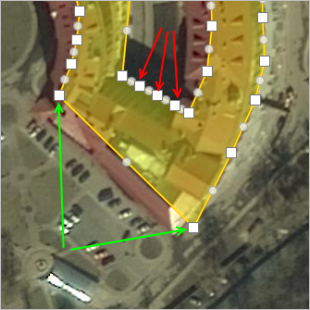

The green arrows on the drawing below show correct usage; the red ones — incorrect usage (because there are too many vertexes):

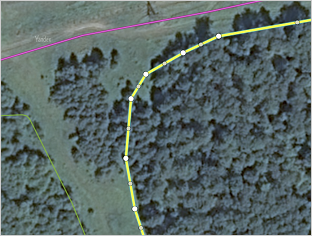

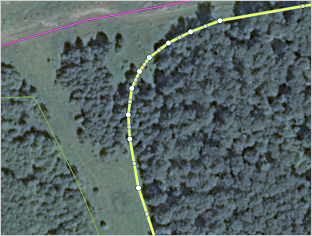

Sections of items that are not straight should be drawn using as few vertexes as possible while maintaining the smoothness of the outline at all map scales (all the way to 18):

Correct Incorrect

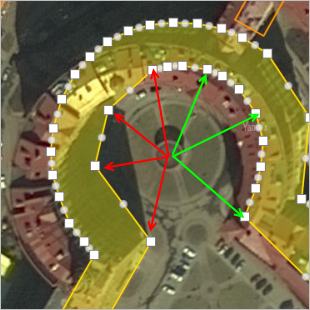

The green arrows on the drawing show correct usage; the red ones — incorrect usage (because there are not enough vertexes to make the outline sufficiently smooth):

Note. You can't apply the Round all corners operation to items in the “Administrative division” category, but you can draw administrative division borders along the rounded contours of hydrographic items and island coastlines.
