Ads in the video player

General provisions

VAST is a standard that describes the process of serving banners by a video player and sending statistics to an ad server.

The international media standards are used for embedding ads, including the VAST 2.0, VAST 3.0, and VPAID 2.0 standards. This article describes the final solutions within the framework of these standards.

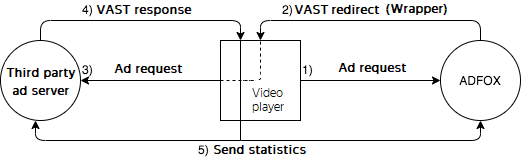

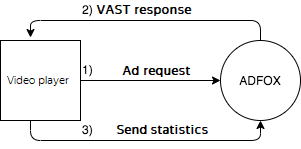

Ads are served in the following way: the player requests the video banner, displays the contents of the VAST response, and sends statistics on impressions and other events to Adfox (statistics can also be sent to third-party systems using pixels). This can happen either directly between the video player and Adfox, or among the video player, Adfox, and a third-party ad server. When accessing Adfox, the player receives VAST XML as shown in the example.

The Wrapper response contains the Wrapper tag with a link to a third-party ad server. A third-party server can send a Linear Ad or Wrapper banner that links to another ad server. As a result, the last server in the chain must send all the files necessary for ad serving.

Available preset templates

Linear Ads Video

A full-frame ad that pauses the playback of video content. This is usually a video ad, but static images displayed at a certain time may also be used. This type of ad can be served before the video content is played (pre-roll), in a break during content playback (mid-roll), or after the video playback (post-roll).

The content type is a video file.

Linear-Ad (Pre / Mid / Post-roll) VAST 3.0 Viewability

A template with a viewability check. If more than 50% of the player is within the viewable area, a viewability event is triggered after 2 seconds. Event statistics are available in reports.

Linear-Ad (Pre / Mid / Post-roll) VAST 2.0 Compatible No Click

A template for a video without click support.

Linear-Ad (Pre / Mid / Post-roll) VAST 3.0

A template with click support.

Linear Ads Audio

The content type is an audio file.

Linear-Ad (Pre / Mid / Post-roll) VAST 3.0

A template for an audio without click support.

Nonlinear Ads

An overlay ad that's served simultaneously with the main video playback. This is usually a static image that's placed in the player and occupies part of the player area.

Non-Linear Adfox Overlay Image VAST 3.0

A template for displaying an image on top of a video. The content type is an image.

Parameters for adding a banner to Adfox:

• Image: A file or link to an image.
• Width: The image width.
• Height: The image height.
• Bottom margin: The player's bottom margin (in percentages).
• Click URL: The click link.
• box-shadow: The CSS property that describes the style of the shadow cast by the image on the video.

The required parameters are the image, width, and height.

Sample VAST

Non-Linear Adfox Overlay HTML VAST 3.0

A template for displaying arbitrary HTML on top of a video. The content type is HTML code. The entire banner area is clickable.

Parameters for adding a banner to Adfox:

• HTML code: The HTML code of the creative.
• Width: The iframe banner width.
• Height: The iframe banner height.
• Bottom margin: The player's bottom margin (in percentages).
• Click URL: The click link.
• box-shadow: The CSS property that describes the style of the shadow cast by the image on the video.

The required parameters are the HTML code, width, and height.

Sample VAST

Non-Linear Adfox Overlay HTML Custom VAST 3.0

A template for displaying arbitrary HTML on top of a video. The content type is HTML code. A template where you can set clickable areas.

Parameters for adding a banner to Adfox:

• HTML code: The HTML code of the creative.
• Width: The iframe banner width.
• Height: The iframe banner height.
• Bottom margin: The player's bottom margin (in percentages).
• Click URL: The click link.
• box-shadow: The CSS property that describes the style of the shadow cast by the image on the video.

The required parameters are the HTML code, width, and height.

Sample VAST

Wrapper (VAST redirect)

A VAST instance that redirects to another URL for receiving ads and contains additional pixels. Used for forwarding third-party ads and measuring events in Adfox.

VAST 2.0 Wrapper can link to the contents of VAST 3.0, and VAST 3.0 Wrapper can link to VAST 2.0.

The content type is a link to VAST XML.

Preset InPage templates available in Adfox

Linear-Ad (Pre / Mid / Post-roll) VAST 2.0 for InPage

Template for the video file" content type.

Linear-Ad (Pre / Mid / Post-roll) VAST 3.0 for InPage Viewability

Template for the video file" content type with a viewability check.

Wrapper VAST 2.0 for InPage

Template for Wrapper VAST XML" content.

To learn more about using templates, see InPage video.

Get a link to VAST XML

You can get a link to VAST in the same way as the usual Adfox ad tags.

Instead of the code, there's a link of the following type:

https://yandex.ru/ads/adfox/168627/getCode?p1=bigha&p2=eojh&puid1=&puid2=&puid3=

Check links

You can check the links at a special page.

Use your own player

1. Connect the ADSDK library in the <head> tag.

   <html xmlns="http://www.w3.org/1999/xhtml">
   <head>
       <script
            type="text/javascript"
            charset="utf-8"
            src="https://yandex.ru/ads/system/adsdk.js">
       </script>
   </head>
   </html>


2. Declare a variable: an object with Adfox parameters.

   var adFoxParameters = {
       adFoxParameters: {
           ownerId: 168627,
           // Parent container tag's ID <video></video>
           containerId: 'videoParent',
           // Adfox Parameters
           params: {
               p1: 'bdcfe',
               p2: 'ekza',
               pfc: 'bupfm',
               pfb: 'frtqn'
           },
       }
    }


3. To start playback, call the play method by passing the Adfox configuration to it.

   ya.videoAd.play({
       // Video element
       videoSlot: document.querySelector('#video'),
       // An element for controls display. The element should not be positioned statically.
       // Parent video element can be used.
       slot: document.querySelector('#videoParent'),
       // Loader config and ads playback config.
       config: adFoxParameters,
   });


Implementation example.

Integration instructions:

• Standard integration
• Integration with Adfox

Ad label

It's mandatory to use the ad label and indicate the advertiser and (or) their website if you launch ads for display in Russia. To learn more about the label and banner menu, see Using the ad label and indicating the advertiser in Adfox banners.

To add an ad label to the player where the Yandex Video Ads SDK library is added, go to the banner parameters in the Ad label list, select “Ad” or “Social ad”. The ad label will be displayed automatically.

To add a token to a non-clickable banner, enable the Show banner menu option in the banner settings. When the banner is served, the menu icon  will be displayed in the upper right corner of it. When a user clicks this icon, the advertiser information and the copy token button appear (if ad register is enabled for the banner and a third-party token is specified).

The banner menu contains a link to the rules for using recommendation technologies. That is necessary to comply with paragraph 3, section 1, article 10.2-2 of Federal Law No. 149-FZ On information, information technologies, and information protection", dated July 27, 2006.

If you don't use the Yandex Video Ads SDK library to show ads, add support of the extension tag to the player in the following format:

<Extensions>
        <Extension type="AdTitle">
                <![CDATA[
                        {
                                "show": "%banner.ad_label%",
                                "domain": "%banner.domain:jsenc%"
                        }
                ]]>
        </Extension>
        <Extension type="AdTune">
                <![CDATA[
                        {
                                "show": "%banner.ad_tune%",
                                "token": "%banner.token:jsenc%",
                                "advertiserInfo": "%campaign.advertiser:jsenc%",
                                "socialAdvertising": "%banner.ad_label_social%"
                        }
                ]]>
        </Extension>
</Extensions>

Depending on the ad label settings in the banner, macros take the following values:

Examples of the extension tag:

<Extensions>
        <Extension type="AdTitle">
                <![CDATA[
                        {
                                "show": 1,
                                "domain": "",
                                "socialAdvertising": 0
                        }
                ]]>
        </Extension>
        <Extension type="AdTune">
                <![CDATA[
                        {
                                "show": 1,
                                "token": "token",
                                "advertiserInfo": "Advertiser information"
                        }
                ]]>
        </Extension>
</Extensions>

<Extensions>
        <Extension type="AdTitle">
                <![CDATA[
                        {
                                "show": 1,
                                "domain": "example.com",
                                "socialAdvertising": 0
                        }
                ]]>
        </Extension>
        <Extension type="AdTune">
                <![CDATA[
                        {
                                "show": 1,
                                "token": "token",
                                "advertiserInfo": "Advertiser information"
                        }
                ]]>
        </Extension>
</Extensions>

<Extensions>
        <Extension type="AdTitle">
                <![CDATA[
                        {
                                "show": 0,
                                "domain": "example.com",
                                "socialAdvertising": 1
                        }
                ]]>
        </Extension>
        <Extension type="AdTune">
                <![CDATA[
                        {
                                "show": 0,
                                "token": "token",
                                "advertiserInfo": "Advertiser information"
                        }
                ]]>
        </Extension>
</Extensions>

<Extensions>
        <Extension type="AdTitle">
                <![CDATA[
                        {
                                "show": 1,
                                "domain": "",
                                "socialAdvertising": 1
                        }
                ]]>
        </Extension>
        <Extension type="AdTune">
                <![CDATA[
                        {
                                "show": 0,
                                "token": "token",
                                "advertiserInfo": "Advertiser information"
                        }
                ]]>
        </Extension>
</Extensions>

Events

The preset Adfox templates have a <TrackingEvents> container with the <Tracking> tags in it. Every <Tracking> element contains the Adfox URI that the video player must use to make a request when a certain event occurs. The event name is passed in the event attribute.

Response if there's no ad

When there's no suitable ad to serve, Adfox returns the following XML:

• InStream banner type:

  <?xml version=”1.0”?><nobanner></nobanner>


• InPage banner type:

  <?xml version=”1.0”?><VAST version="2.0"/>


To add a default banner for VAST player ads, you need an ad request link. Put this link in square brackets in the VASTAdTagURI block:

<?xml version="1.0" encoding="UTF-8"?>
<VAST version="2.0">
    <Ad id="%placeId%">
        <Wrapper>
            <AdSystem>Adfox.ru</AdSystem>
            <VASTAdTagURI>
                <![CDATA[//yandex.ru/ads/adfox/XXXXXX/getCode?p1=xxx&p2=xxx&pfc=a&pfb=a&plp=a&pli=a&pop=a&puid1=%userValue1%]]>
            </VASTAdTagURI>
            <Impression></Impression>
            <Creatives></Creatives>
        </Wrapper>
    </Ad>
</VAST>

If you need to pass additional parameters to the request code forwarded, use macros:

• For values of user characteristics: puidN with the %request.puidN% value, where N is the characteristic number. For example, &puid1=%request.puid1%.
• To send a referer: dl with the %request.referrer:urlenc% value. For example, &dl=%request.referrer:urlenc%.

Copy the code and install it in the XML code of the placement's backup ad and/or banner type.
