Panorama

With MapKit SDK, you can see what any terrain (for example, landmarks, roads or buildings) looks like in panoramic format.

Panorama typesPanorama types

MapKit SDK supports several types of panoramas:

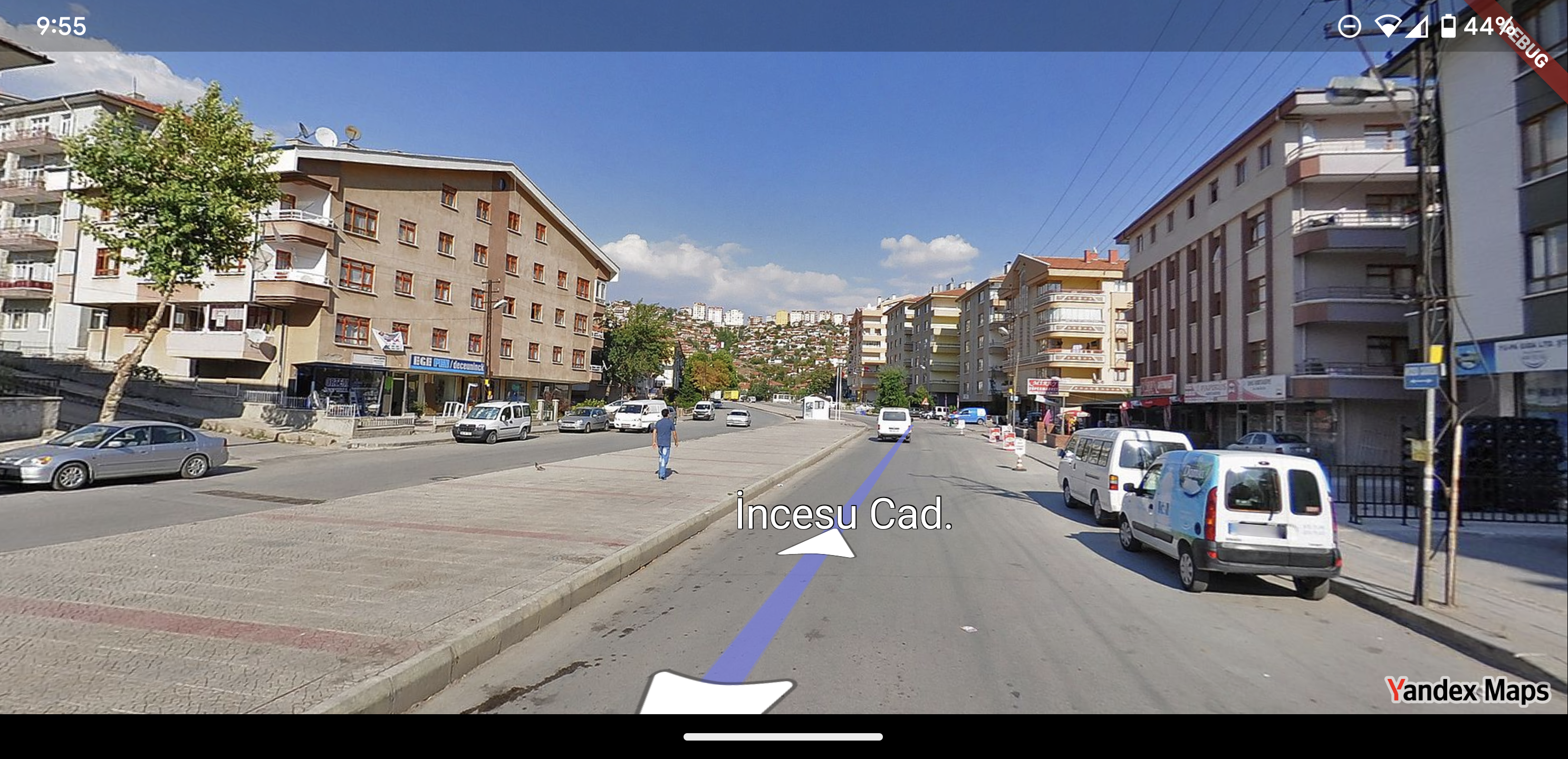

1. Street panoramas.

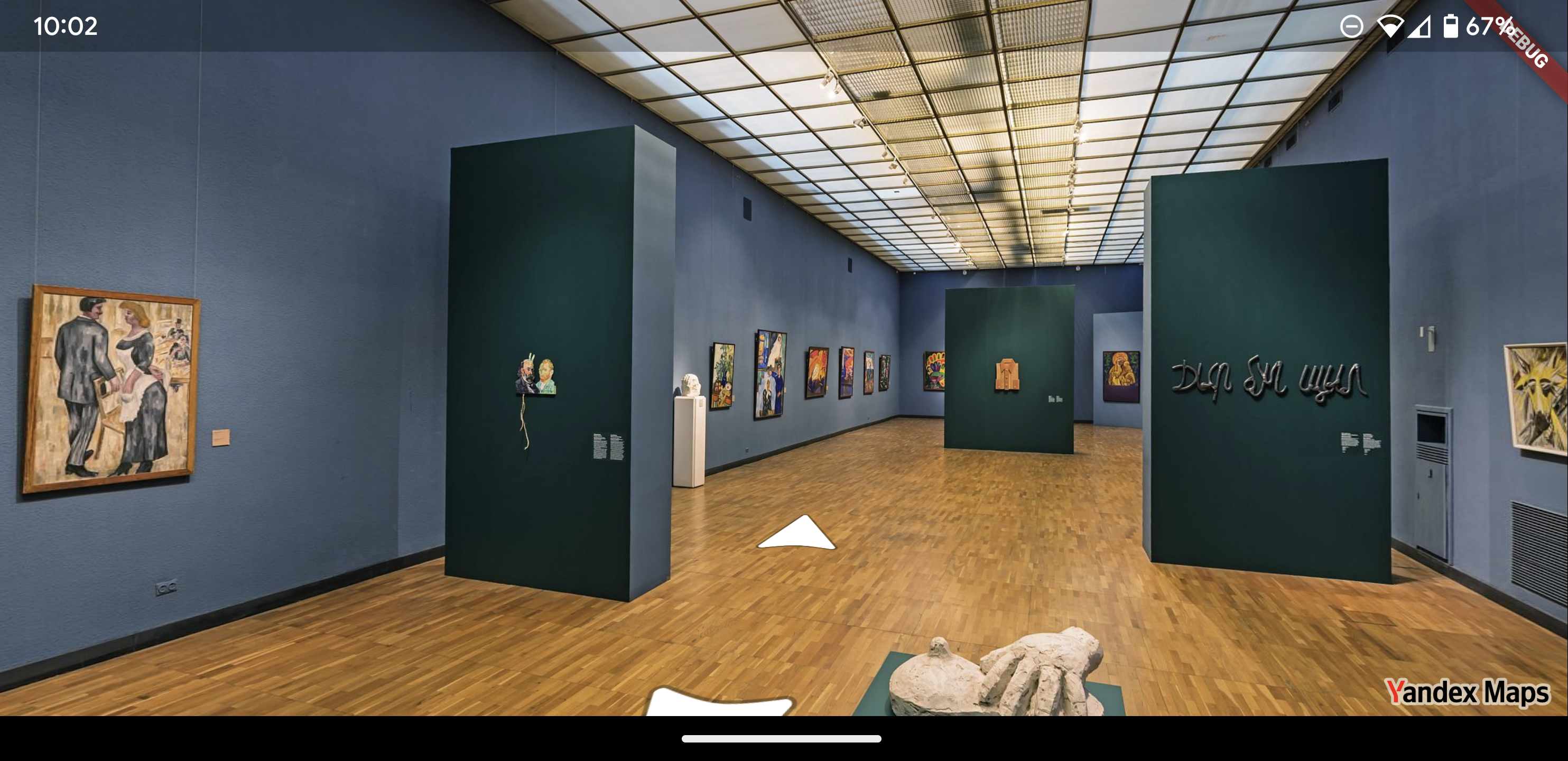

2. Interior panoramas.

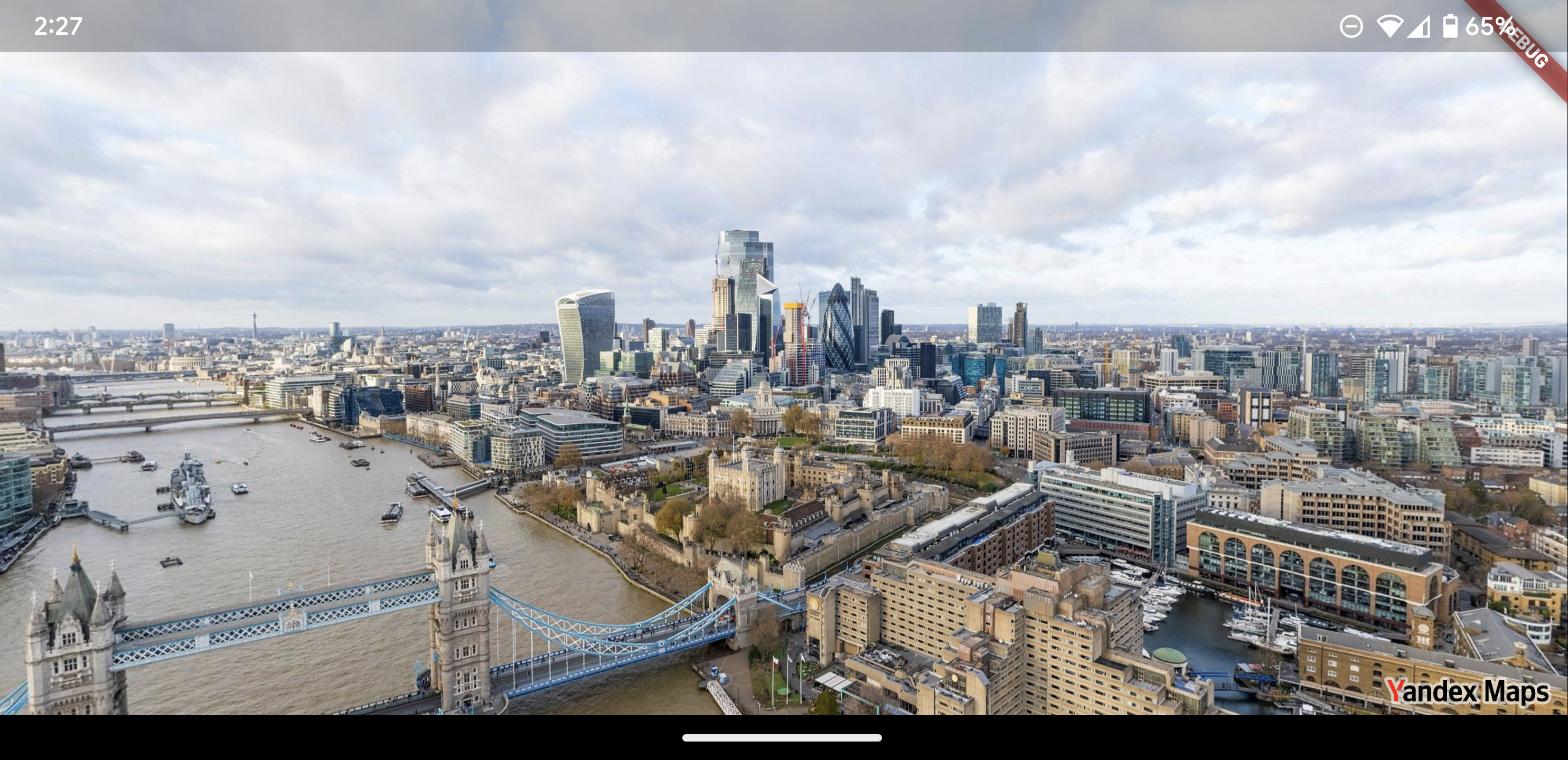

3. Aerial panoramas.



Viewing panoramaViewing panorama

Follow these steps to view the panorama:

1. Create and configure a panorama layer.

   PlacesFactory.instance.createPanoramaLayer(mapWindow)
     ..setStreetPanoramaVisible(true)
     ..setAirshipPanoramaVisible(true);


   • PanoramaLayer.setStreetPanoramaVisible enables displaying street and interior panoramas on the map.
   • PanoramaLayer.setAirshipPanoramaVisible enables the display of air panoramas on the map.

2. Get the panorama ID depending on the selected panorama type:

   • To obtain the ID of a street or interior panorama, use the PanoramaService.findNearest method. You need to pass a point on the map to it to search for the closest panorama.
   • To obtain the aerial panorama ID, you need to use GeoObject.metadataContainer to obtain the AirshipTapInfo object, which contains panoramaId.

3. Finally, to open a panorama, its ID must be passed to PanoramaWidget.

   void navigateToPanorama(String panoramaId) {
     Navigator.of(context).push(
       PageRouteBuilder(
         pageBuilder: (context, animation, secondaryAnimation) {
           return PanoramaWidget(
             onPanoramaCreated: (PanoramaPlayer panoramaPlayer) {
               panoramaPlayer.openPanorama(panoramaId);
             },
           );
         },
       )
     );
   }


   Also, in the documentation of the PanoramaPlayer class, you can find several methods that can be useful for setting up a panorama.

Panorama layerPanorama layer

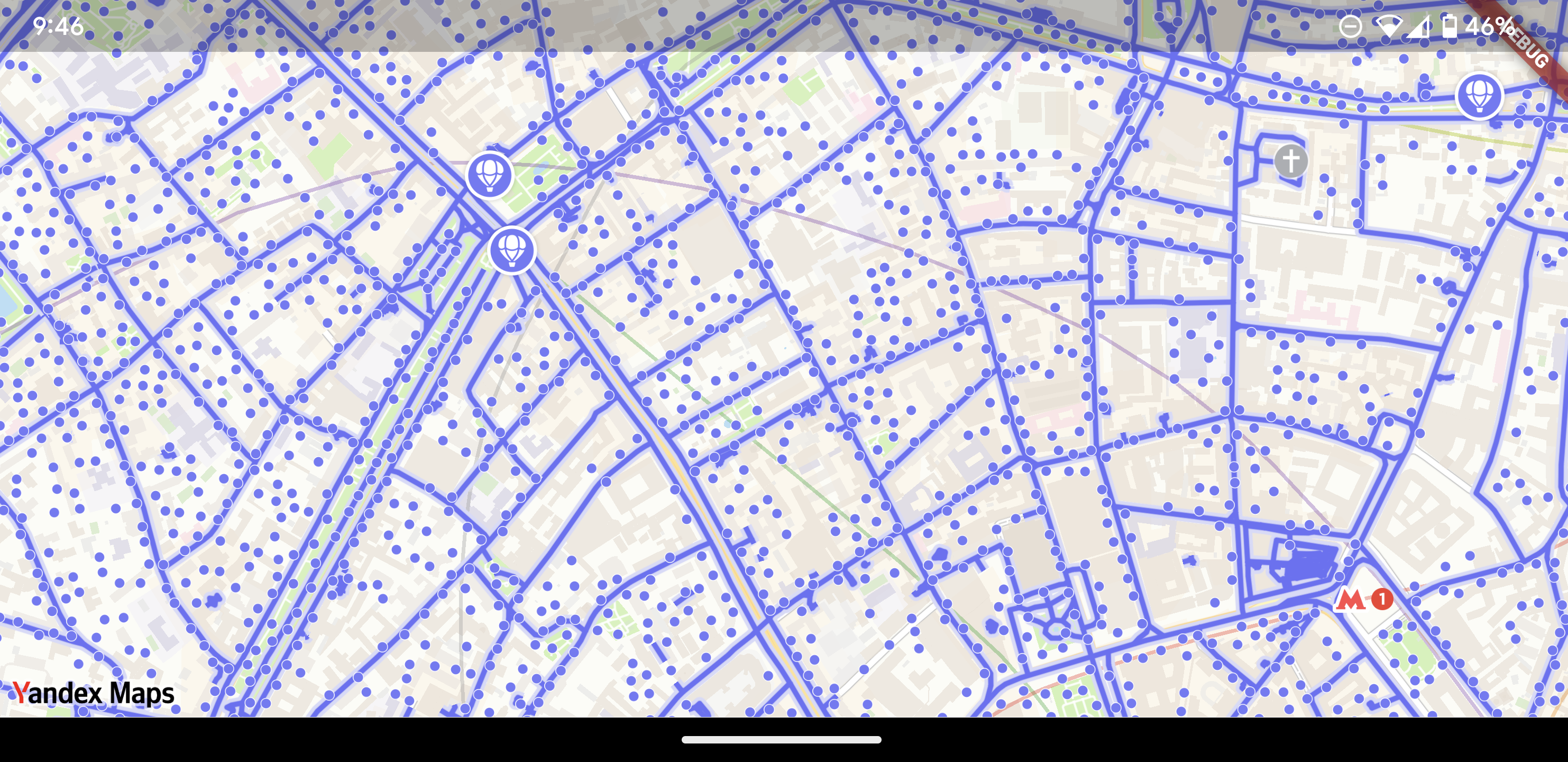

The panorama layer allows you to see places on the map where you can open a panorama. After creating this layer, you should see new objects on the map that indicate places with a viewable panorama:

• Blue dots and polylines indicate street or interior panoramas.
• Balloon icons indicate aerial panoramas.

Examples of getting the panorama IDExamples of getting the panorama ID

To get the ID of a street or interior panorama, you can use the following code:

final class MapInputListenerImpl implements MapInputListener {

  final PanoramaService panoramaService;
  final PanoramaServiceSearchListener panoramaSearchListener;

  PanoramaServiceSearchSession? searchSession;

  const MapInputListenerImpl(
    this.panoramaService,
    this.panoramaSearchListener,
  );

  @override
  void onMapTap(Map map, Point point) {
    // You need to store reference to search session until panoramaSearchListener is notified
    searchSession = panoramaService.findNearest(
      point,
      panoramaSearchListener,
    );
  }

  @override
  void onMapLongTap(Map map, Point point) {}
}

final panoramaService = PlacesFactory.instance.createPanoramaService();

final panoramaSearchListener = PanoramaServiceSearchListener(
  onPanoramaSearchResult: (String panoramaId) => navigateToPanorama(panoramaId),
  onPanoramaSearchError: (error) {
    // Handle search error
  }
);

final mapInputListener = MapInputListenerImpl(
  panoramaService,
  panoramaSearchListener,
);

mapWindow.map.addInputListener(mapInputListener);

• The onMapTap(Map, Point) callback returns the point on the map where the tap occurred.
• This point is then passed to PanoramaService.findNearest to find the ID of the panorama closest to it.
• When the panorama ID is found, PanoramaServiceSearchListener will be notified about it.
• You can read more about processing taps on the map here.

To get the aerial panorama ID, you can use the following code:

final class LayersGeoObjectTapListenerImpl implements LayersGeoObjectTapListener {

  final bool Function(GeoObjectTapEvent) onObjectTapped;

  const LayersGeoObjectTapListenerImpl({
    required this.onObjectTapped,
  });

  @override
  bool onObjectTap(GeoObjectTapEvent event) => onObjectTapped(event);
}

final geoObjectTapListener = LayersGeoObjectTapListenerImpl(
  onObjectTapped: (event) {
    final geoObject = event.geoObject;
    final airshipTapInto = geoObject.airshipTapInfo;
    final point = geoObject.point;

    if (airshipTapInto != null && point != null) {
      navigateToPanorama(airshipTapInto.panoramaId);
      return true;
    }
    return false;
  }
);

mapWindow.map.addTapListener(geoObjectTapListener);

• It's important to note that the balloon icon, which indicates an aerial panorama on the map, is an object of the GeoObject class.
• Therefore, to obtain the GeoObject object when tapping the aerial panorama icon, you need to use the LayersGeoObjectTapListener class.
• Next, using GeoObject.metadataContainer, you can get the AirshipTapInfo object, which contains panoramaId.
• You can read more about interacting with GeoObject objects here.

extension GeoObjectAirshipTapInfo on GeoObject {
  AirshipTapInfo? get airshipTapInfo {
    return metadataContainer.get(AirshipTapInfo.factory);
  }
}

extension ToponymGeoObjectMetadata on GeoObject {
  SearchToponymObjectMetadata? get toponymMetadata {
    return metadataContainer.get(SearchToponymObjectMetadata.factory);
  }
}

extension PointFromGeometry on GeoObject {
  Point? get pointFromGeometry {
    return geometry.map((item) => item.asPoint())
        .whereType<Point>()
        .firstOrNull;
  }
}

extension GeoObjectPoint on GeoObject {
  Point? get point {
    return toponymMetadata?.balloonPoint ?? pointFromGeometry;
  }
}

Source codeSource code

You can check the example implementation of panorama viewing in the map_panorama application in our GitHub repository.
